Fire door assemblies are required to have an adequate quantity of hinges as specified in the standard. A door up to 60 inches in height must have two hinges. Doors over 60 inches tall are required to have one additional hinge for each additional 30 inches of door height (or fraction thereof).

Do fire doors need fire hinges?

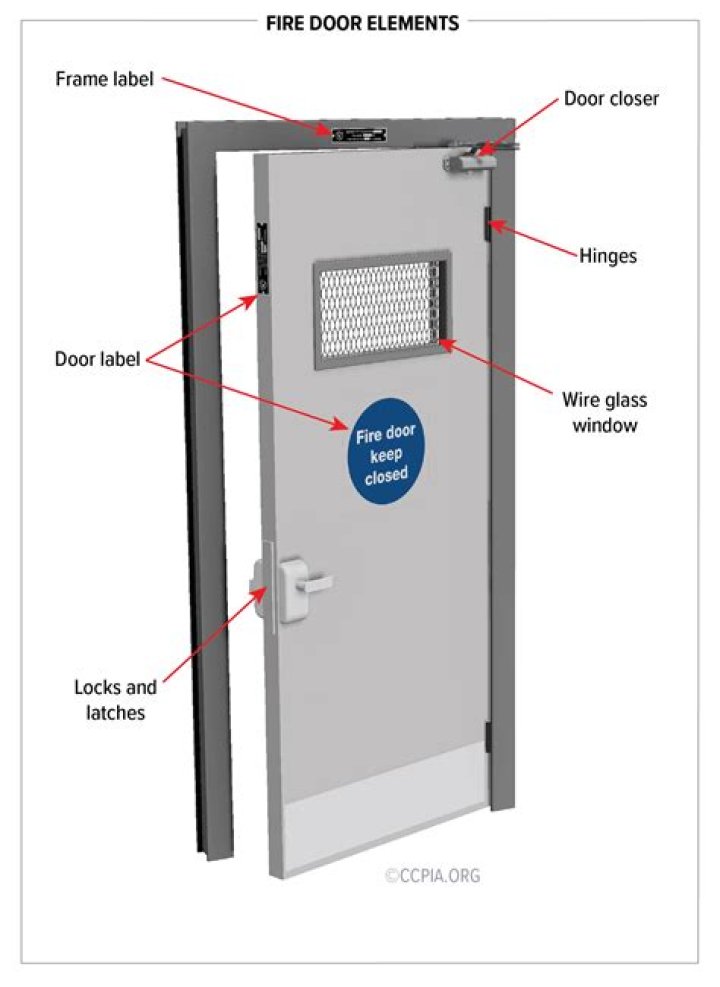

When it comes to fire doors, you need special fire door hinges to ensure that the door is providing an effective fire barrier against heat, smoke and flames. … Standard locks or hinges would melt and smoke would easily get through a frame that is not specifically designed for fire doors.

What grade hinges for fire doors?

Grade 1: suitable for fire/smoke resistant door assemblies subject to satisfactory assessment of the contribution of the single-axis hinge to the fire resistance of the specified fire/smoke door assemblies.

Can I use self closing hinges on a fire door?

As of 6th April 2007, it is no longer a building regulations requirement that a self closing device, such as a perco or spring hinges, be fitted to internal fire doors in dwellings. It has become the responsibility of the occupants to ensure that fire doors are closed at night.

Do fire doors need 2 or 3 hinges?

Fire Regulations require fire doors to be fitted with 3 hinges (which must be 4 inch fire certified hinges). For doors over 2200mm tall, then four hinges can be used to prevent warping.

What are fire door requirements?

Any new build or home renovation that has three or more floors must have fire doors fitted to every habitable room that leads from a stairwell. This applies to loft conversions where an extra floor has been added to a two-storey home. Any door leading from your home into an integral garage must be a fire door.

Can fire doors have 2 hinges?

Because of the weight of a fire door and to prevent it warping, fire doors are usually fitted with three fire door hinges. The current BS EN standard does, however, allow two hinges in certain circumstances.

Does a fire door need a latch?

Fire doors must close behind a person passing through at any angle. … Locks and latches help provide an effective barrier to a fire, which is why they must be CE marked and comply with BS EN 12209. A fire door must remain closed within the frame and therefore a latch or lock will ensure this happens.

Should fire doors automatically close?

According to ADB volume 2, a self closing device is required on a fire door if: subdividing escape routes to separate two or more storey exits. … doors opening onto external escape stairs.

Do fire exit doors need to be self closing?

The final fire exit door must lead to a place of safety. It must have a self-closing mechanism so that the door will shut behind people evacuating in order to contain the fire and smoke. This will also limit the oxygen going in to the building which will feed a fire.

Article first time published on

What size hinges for a fire door?

For internal fire doors (44mm thick), a suitable hinge would be 102mm x 75mm (4″ x 3″). Fire door hinges are also available in a slimline version which is 102mm x 67mm (4″ x 2 1/2″).

Are Grade 13 hinges fire rated?

Grade 13 Fire Door Hinges available in a choice of Satin Stainless Steel, Polished Stainless Steel or Brass Plated Stainless Steel finishes. Security pinned caps, these high quality hinges are fire tested to BS EN1634-1: 2000 – FD60 timber and FD240 steel. Sold as pairs.

What are fire rated hinges?

Fire door hinges are used to protect from fire and smoke damage and are CE rated to conform to HSE standards. Designed to be fitted on entrances in areas that are 30 or 60 minute fire rated. Suitable for commercial and home use.

Why do doors have two hinges at the top?

When modern industry caught up making doors and hinges, they started out with 2 hinges, however, the original wooden machine made doors started to warp or bow in the center, thus a third hinge was added to prevent this bowing.

Why do bathroom doors need 3 hinges?

Usually a heavy veneer door that’s fairly wide needs 3 hinges to keep it straight and also to keep it from warping. A deluxe door always has three and they last a long time. Don’t forget that a bathroom door is used a lot more than most.

Does a fire door need a special frame?

A fire door frame is one of several components that make up a fire door. … A fire door leaf fitted in an unsuitable door frame is not a fire door, as an existing door frame may not have been intended or designed to provide any fire separation performance at all.

What should you never do to a fire door?

1. Never lock a fire door. …
2. Never leave a fire door wedged open. …
3. Never allow a fire door to be blocked. …
4. Enfield Doors.

Do all fire doors need intumescent strips?

It is generally accepted that to provide the required level of fire resistance, all fire doors should be reinforced with either intumescent strips, cold smoke seals or a combination of both.

Do residential fire doors need closers?

Fire doors are required to be self-closing and therefore have fire door closers fitted, which can pose significant obstacles to the young, elderly, infirm or disabled. … To be able to legally keep fire doors held in the open position in normal circumstances, fire door retainers (hold-open devices) are installed.

Can you put a Yale lock on a fire door?

The lock can be instrumental in achieving FD60 and contributes to satisfying fire safety requirements. … The Lockmaster panic door system from Yale offers the advantage of high performance security and compression, together with accredited emergency egress capability.

How do you know if its a fire door?

There are several ways that a fire door can be identified. The first and most prominent way is to look at the edge of the door on the hinge side. All fire doors will have a metal identification tag (figure 1) . Sometimes this tag is painted over, but it will still be recognizable as an identification tag.

Can brass hinges be used on fire doors?

FIRE DOORS: Hinges used on fire doors should be made from materials having a melting point of at least 800 degrees c. Suitable examples are: steel (1371 degrees c), stainless steel (1371 degrees c), brass (900/920 degrees c) and phosphor bronze (900/912 degrees c). Unsuitable: aluminium (650 degrees c).

What is the minimum latch throw on a single fire door?

A typical minimum latch throw is between 1/2-inch and 3/4-inch, depending on the listings. Label – Components used as part of a fire door assembly must be listed and labeled for that purpose.

What is the difference between fire door and fire exit?

Certified fire doors of solid timber construction are designed to resist the smoke and flames of a fire for a minimum specified length of time, typically 30 minutes (FD30), when closed. … A fire exit door on the other hand, is an external door; it can be left open and does not have to be fire resistant.

When should you use a fire exit?

The qualifications for an emergency exit are as follows: it must be in a location that is easily accessible, the exit must have an area or location that it can bring people to in the event of any emergency situation, it must be controlled by the inside of the building, it must be well managed and regularly up kept, and …

What is classed as a fire exit?

A fire exit is usually defined as a means of exiting a building in the event of a fire or a door that is used to let people out of a building when there is a fire.

Are Grade 11 hinges fire rated?

The fire door hinges are Grade 11 rated under BS EN 1935, so have been to 200,000 cycles and can hold interior doors that weigh up to 80kg. This product has been fire-tested for an hour on timber doors.

Are stainless steel hinges fire rated?

1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson closer hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being suitable for both interior and all-weather exterior openings.

How do I choose a door hinge?

There should be a 5“ distance between the top of the door and the highest hinge, and 10″ from the bottom of the door to the lowest hinge. All hinges in between should be equally spaced from one another. Leave a small gap between the door’s frame and the edge of the hinge’s leaf.

What is a Grade 7 hinge?

Grade 7 Ball Bearing Hinge (Max Load 40kg). They have a CE mark and are Fire door rated. … Ball bearing hinges have always been very popular for their smooth operation, durability, long lasting design and ability to carry heavier loads than washered hinges.

What are Grade 13 hinges?

Grade 13 Ball Bearing Hinge, Square (Max Load 120kg). The most popular type of door hinge on the market today. These are a perfect choice for when you have doors of 40mm or 44mm firecheck, internal or external. They have a CE mark and are Certifire tested.
