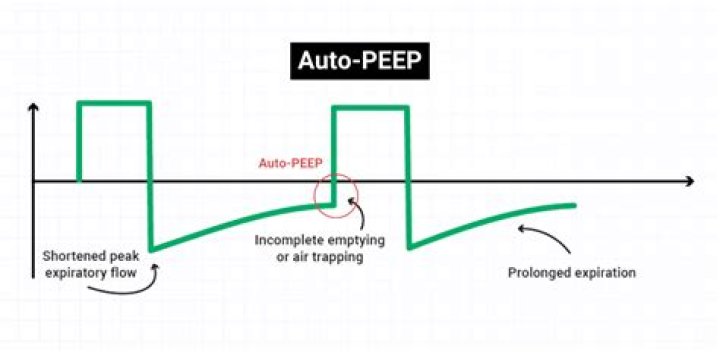

By definition, auto-PEEP occurs when air flow does not return to zero at end-exhalation. It can occur in patients with COPD during spontaneous breathing. 6,7. Dynamic lung hyperinflation caused by auto-PEEP worsens their inspiratory capacity because inhalation cannot be initiated from relaxation volume.

What is auto-PEEP in ventilator?

Auto-positive end expiratory pressure (auto-PEEP) is a physiologic event that is common to mechanically ventilated patients. Auto-PEEP is commonly found in acute severe asthma, chronic obstructive pulmonary disease, or patients receiving inverse ratio ventilation.

What is the difference between PEEP and auto-PEEP?

The difference between PEEPtot and PEEPe corresponds with the intrinsic PEEP (PEEPi), and is also known as AutoPEEP (1). AutoPEEP may also be referred to as air-trapping, breath stacking, dynamic hyperinflation, inadvertent PEEP, or occult PEEP.

What is a normal auto-PEEP?

The normal inspiratory to expiratory ratio (I:E ratio) is 1:2. In patients with obstructive airway disease, the target I:E ratio should be 1:3 to 1:4.

How do you fix auto-PEEP?

1. Decreasing respiratory rate will increase the time between breaths and decrease the inspiratory to expiratory (I:E) ratio to 1:3 to 1:5.
2. Increasing the inspiratory rate to 60 to 100 L/min will assure fast delivery of air during inspiration, lending more time for exhalation.

What is Auto PEEP in COPD?

By definition, auto-PEEP occurs when air flow does not return to zero at end-exhalation. It can occur in patients with COPD during spontaneous breathing. 6,7. Dynamic lung hyperinflation caused by auto-PEEP worsens their inspiratory capacity because inhalation cannot be initiated from relaxation volume.

How do you lower the auto PEEP on a ventilator?

1. Change ventilator settings. Increase expiratory time. Decrease respiratory rate.
2. Reduce ventilatory demand. Reduce anxiety, pain, fever, shivering. Reduce dead space.
3. Reduce flow resistance. Use large-bore endotracheal tube. Suction frequently.

What is the highest PEEP setting?

PEEP of 29 appears to be the highest tolerated PEEP in our patient. We noted an initial rise in blood flow across all cardiac valves followed by a gradual decline. Studies are needed to investigate the immediate effect and long-term impact of PEEP on cardiopulmonary parameters and clinical outcomes.

Is a PEEP of 15 bad?

To determine optimum PEEP, Gaussian mixture model was applied to the adjusted means of cardiac output and oxygen delivery. Increasing PEEP to 10 and higher resulted in significant declines in cardiac output. A PEEP of 15 and higher resulted in significant declines in oxygen delivery.

Does PEEP cause hypotension?

PEEP was subsequently increased to 20 cm H2O after which the SpO2 decreased to 79%. This was accompanied by worsening hypotension and a decrease in the central venous hemoglobin saturation (ScvO2) from 60 to 40%.

Article first time published on

What does FiO2 mean on a ventilator?

FiO2: Percentage of oxygen in the air mixture that is delivered to the patient. Flow: Speed in liters per minute at which the ventilator delivers breaths. Compliance: Change in volume divided by change in pressure.

How does PEEP improve oxygenation?

The use of positive end expiratory pressure (PEEP) in patients with acute lung injury (ALI) improves arterial oxygenation by alleviating pulmonary shunting, helping the respiratory muscles to decrease the work of breathing, decreasing the rate of infiltrated and atelectatic tissues, and increasing functional residual …

Can high PEEP cause pneumothorax?

High PEEP had been reported to be associated with pneumothorax[1] but several studies have found no such relationship[15,17,23,28,37]. Increased pressure is not enough by itself to produce alveolar rupture, with some studies demonstrating that pneumothorax is related to high tidal volume[37].

Is CPAP a ventilator?

CPAP is Continuous Positive Airway Pressure. It is a type of non-invasive ventilation (NIV) or breathing support.

What are the settings on a ventilator?

Almost all ventilators have the capability of being set to four basic modes: AC, synchronized intermittent mandatory ventilation (SIMV), airway pressure release ventilation (APRV), and pressure support (PS).

What does a PEEP of 5 mean?

A higher level of applied PEEP (>5 cmH2O) is sometimes used to improve hypoxemia or reduce ventilator-associated lung injury in patients with acute lung injury, acute respiratory distress syndrome, or other types of hypoxemic respiratory failure.

Why is AutoPEEP bad?

The main problem with auto-PEEP is that gas trapping in the alveoli leads to dynamic hyperinflation of the lungs and increased positive pressure in the alveoli. This makes it harder for gas to escape the alveoli until airway pressures exceed alveolar pressures.

How is dynamic hyperinflation treated?

Dynamic hyperinflation can be reduced by either improving airflow during expiration or by reducing the rate of breathing to increase the time for expiration. Bronchodilators and heliox decrease airflow resistance, allowing more rapid airflow during expiration.

What causes dynamic hyperinflation?

Dynamic hyperinflation develops when there is expiratory air-flow limitation in the face of decreased time for exhalation. Expiratory flow is determined by airway resistance and driving pressure for air movement (which is the difference between mouth and alveolar pressure).

What is PEEP Covid?

The effects of positive end expiratory pressure (PEEP) in COVID-19-related acute respiratory distress syndrome (ARDS) are similar to those reported in classical ARDS, according to study results published in the American Journal of Respiratory and Critical Care Medicine.

How do you tell if a patient is breathing over the ventilator?

Spontaneously breathing patients only. How do I know when my patient is triggering the vent / breathing over rate? Two ways: 1) Compare Set rate to actual rate on screen of vent. If actual (located on left side of screen) is more than set (on the right side of the screen) – patient is breathing over.

What is FiO2 and PEEP?

Initial Adult Ventilator Settings. You have to start somewhere ✓ Fraction of inspired oxygen (FiO2)—100% ✓ Positive End Expiratory Pressure (PEEP)–5 cmH20 ✓ Respiratory Rate—12 breaths per minute ✓ Tidal Volume 6-8 ml per weight in kilograms (ideal body weight). Most adults will require at least 500 ml.

Should PEEP be high or low?

Both higher PEEP and recruitment manoeuvres can reduce atelectasis and increase end-expiratory lung volume. Physically, we need higher pressure to open alveoli and only need a relative lower PEEP to keep the lung open. Therefore, it was noted that higher PEEP should follow the recruitment manoeuvres. Goligher et al.

Is high or low PEEP better?

Higher PEEP levels may improve oxygenation and reduce ventilator-induced lung injury but may also cause circulatory depression and lung injury from overdistention. We conducted this trial to compare the effects of higher and lower PEEP levels on clinical outcomes in these patients.

What is normal oxygen level on ventilator?

Goal of Oxygenation However, a target SpO2 of 92% to 96% seems logical, considering that indirect evidence from patients without COVID-19 suggests that an SpO2 of <92% or >96% may be harmful.

What effect does PEEP have on the heart?

PEEP causes an increase in intrathoracic pressure (ITP) and a right shift in the cardiac function curve. If there were no change in the VR curve, then CO and VR would decrease (from point A to point B).

Is CPAP and PEEP the same?

Positive end-expiratory pressure (PEEP) is the pressure in the alveoli above atmospheric pressure at the end of expiration. CPAP is a way of delivering PEEP but also maintains the set pressure throughout the respiratory cycle, during both inspiration and expiration.

What is risk of keeping high PEEP?

Pulmonary barotrauma is a frequent complication of PEEP therapy. Pneumothorax, pneumomediastinum, and interstitial emphysema may lead to rapid deterioration of a patient maintained on mechanical ventilation with an already compromised respiratory status.

What is the lowest setting on a ventilator?

When using the ventilator a PS of 5 – 7 cmH2O and 1-5 cmH20 PEEP (so called ‘minimal ventilator settings’) will overcome increased work of breathing through the circuit (i.e. ETT) If still on the ventilator the patient should have ‘minimal ventilator settings”

What FiO2 is 6l?

What FiO2 is 6 LPM of supplemental oxygen? At 6 LPM, the approximate FiO2 is 44%.

How long can a person be on a ventilator in an ICU?

Some people may need to be on a ventilator for a few hours, while others may require one, two, or three weeks. If a person needs to be on a ventilator for a longer period of time, a tracheostomy may be required.
