Industrial CPVC pipe is manufactured by extrusion in sizes from ¼” to 12″ diameter to Sch 40, Sch 80, and SDR (Standard Dimension Ratio) dimensions. CPVC pipe for plumbing systems is manufactured by extrusion in sizes ¼” through 2″ copper tube size (CTS) dimensions.

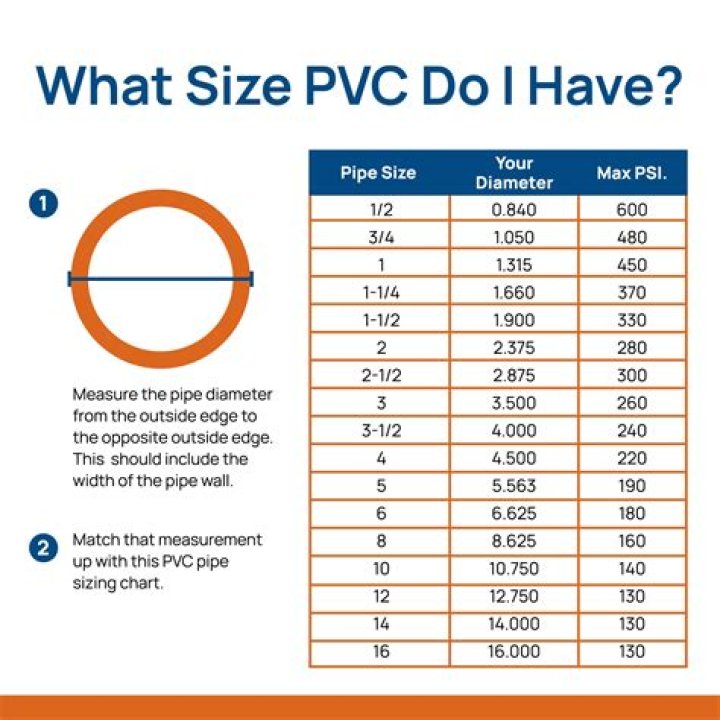

What size does CPVC pipe come in?

Nominal Pipe SizeOutside DiameterWeight(lb/100 ft)(inches)(inches)CPVC1/20.84173/41.052311.31534

Is PEX and CPVC the same size?

CPVC Pipes Offer Better Water Pressure Than PEX With PEX, the pipe fits around the outside of the fitting so the internal diameter of the pipe is reduced at each fitting—even when “full flow” expansion fittings are used. Depending on the fitting used, this can reduce the internal diameter of a ½” pipe by 21% to 35%.

Is PVC and CPVC the same size?

No. CPVC is measured by O.D., which makes its sizing similar to hard copper. PVC is measured by I.D., which makes its sizing similar to iron pipe.

How many types of CPVC pipe are there?

Class of Pipe/FittingStandardSizes AvailableSDR 11 fittingsASTM D 28461/2″ – 2″Sch. 40 FittingsASTM F 43821/2″ – 6″Sch. 80 FittingsASTM F 43921/2″ – 4″

Do PVC and CPVC have the same OD?

80 PVC and sch. 80 CPVC will fit together because they have the same ID and OD. The same is true of schedule 40 PVC and CPVC, but that type of CPVC is rarely used. One major difference between these two types of piping, when it comes to sizing, is the fact that CPVC is made in two different sizing systems: NPS and CTS.

What is the inside diameter of 1/2 inch CPVC?

Size (in.)Wall Thickness (in.)Inner Diameter (in.)1/20.1470.5463/40.1540.74210.1790.9571 1/40.1911.278

Is CPVC the same as CTS?

CTS stands for Copper Tube Sizing. This is different from other PVC or CPVC pipes, which commonly use NPS, or Nominal Pipe Size, dimensions. … CPVC CTS pipe is used for hot and cold water distribution in pressure systems that do not exceed 180 degrees Fahrenheit.

Is Schedule 40 the same as CPVC?

CPVC Schedule 40 pressure pipe has an upper working temperature limit of 200°F (93°C) and has longer support spacing than PVC Schedule 40 pipes. Schedule 40 CPVC systems can be found in water and wastewater treatment, hot chemical drainage and plating applications, amongst others.

What happens if I use PVC glue on CPVC?

When working with CPVC piping, use multipurpose PVC/CPVC glue or a CPVC glue; glue made specifically for PVC will not hold properly on CPVC and could lead to leaks or breakage. CPVC pipes can withstand hot water temperatures up to 180 degrees F. Cut the CPVC pipe to size with a fine tooth saw.

Article first time published on

Should I replace CPVC with PEX?

CPVC also has a lower biofilm growth potential than PEX, reducing the risk of biofilms such as E. coli, coliforms and legionella growing inside the pipes. Another factor to consider is the impact of PEX fittings on flow rates and pressure.

Can you plumb a house with CPVC?

SACRAMENTO, CALIF. The new regulations approve CPVC pipe for use in residential water supply piping systems. … CPVC has been a nationally accepted material since 1982, but California has only permitted its use on a limited basis since 2001.

Should I use PEX or CPVC?

CPVC pipe can withstand higher temperatures than PVC or PEX pipe (up to 200 degrees Fahrenheit vs. … It’s ideal for residential water distribution because it offers better joint strength than PVC and copper and better corrosion resistance versus metal pipes. CPVC also virtually eliminates water hammer noise.

Are there different grades of CPVC?

Pipe-grade CPVC product line includes schedules 40 and 80 piping from 1/4″ through 24″ diameters. CPVC piping systems can handle more than three-fourths of the temperature/pressure requirements of today’s typical process plants. … 6″ Schedule 80 CPVC pipe is designed for 270 psi @ 73°F, and 54 psi @ 200°F.

What is Schedule 80 CPVC pipe?

CPVC Pipe is used in corrosive resistant applications. Pipe ranges from 1/8” to 24” in size and can be used in applications reaching as high as 200°F. Pressure ratings change on the pipe with size, the schedule of the pipe and the temperature that the pipe will be under.

Which pipe is better PPR or CPVC?

1. Physical Properties. With 60% greater tensile strength and nearly twice the flexural strength, CPVC is a stronger, more durable piping material than PP R. Due to its strength, CPVC can withstand more pressure, which means same flow rate with smaller pipes.

What is the wall thickness of CPVC pipe?

CPVC pipes from 15 mm (½”) to 50 mm are also confirms to BIS standard IS- 15778 in both class that is Class 1 (SDR 11) and Class 2 (SDR 13.5). The pipes & fittings from size 2½” to 6″ are available in iron pipe size (IPS).

Do you need purple primer on CPVC pipe?

Purple Primer can be used with all types, schedules and classes of PVC and CPVC pipe and fittings. A low VOC formulation. In most cases a successful solvent cement joint can be made without using a primer. … Using Purple Primer is always recommended to make a good connection.

Can you use Red Hot Blue glue on CPVC?

The introduction of granules or pellets of calcium hypochlorite wih PVC and CPVC solvent cements and primers (including their vapors) may result in a violent chemical reaction if a water solution is not used. … Christy’s Red Hot Blue Glue® Low VOC can be used for rigid and flexible PVC plastic pipe and fittings.

Can you use oatey PVC cement on CPVC?

It is approved for Corzan® CPVC piping systems. Its medium body has excellent gap filling properties and is easy to apply. This orange, low VOC, fast set cement can be used to solvent weld all schedules and classes of CPVC pipe and fittings up to 6 in. diameter with interference fit.

Is Schedule 80 PVC the same as CPVC?

Schedule 80 refers to the thickness of the pipe, and CPVC refers to the chemical makeup of the pipe. Therefore, schedule 80 CPVC is able to tolerate the PSI levels of schedule 80 PVC, which vary depending on the size of the pipe, while handling the temperatures of CPVC (200⁰ F).

Which is costly CPVC or UPVC?

UPVCCPVCUPVC is not used for the purpose of drinking water transmission.CPVC is suitable for the purpose of drinking water transmission.UPVC is rigidCPVC is flexible

What is the difference between Schedule 40 and Schedule 80 CPVC?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

What does CTS mean in plumbing?

Copper Tube Size (CTS) Piping.

Which is bigger PVC or CPVC?

PVC is available in 10 ft and 20 ft lengths. CPVC is available in 10 ft and 20 ft lengths. Certain diameters of PVC pipe and furniture PVC pipe are now available in 5 ft sections.

Will SharkBite work on CTS pipe?

If it has a white collar, the fitting works with PVC pipe and is compatible with schedule 40, 80 and 120 PVC. And SharkBite couplings with a tan collar are designed to work with CTS pipes. … All SharkBite fittings are approved for behind-the-wall installation and, if you use silicone wrap, underground burial too.

What color is CPVC glue?

CPVC cement is either yellow or orange, depending on the brand of pipe.

Do you use primer with CPVC glue?

Primer is needed to prepare the bonding area for the addition of cement and subsequent assembly. Use a proper applicator, such as a dauber, swab or paintbrush, approximately half the size of the pipe diameter. Apply the primer to the inside of the fitting socket and to the outiside of the pipe end.

Is all purpose cement good for CPVC?

Oatey® All-Purpose ABS, PVC and CPVC Medium Bodied Clear Cement is recommended for DWV, potable water and irrigation applications. … This milky-clear, low VOC, all-purpose cement can be used to solvent weld all schedules and classes of ABS, PVC and CPVC pipe and fittings up to 6 in. diameter with interference fit.

What is the life expectancy of CPVC?

According to the experts at the International Association of Certified Home Inspectors (InterNACHI), CPVC pipes are expected to last for 50 to 75 years under optimal conditions.

Will SharkBite fittings work on CPVC?

SharkBite brass push-to-connect fittings are compatible with PEX, Copper, CPVC, PE-RT and SDR-9 HDPE pipe. SharkBite fittings come with a PEX stiffener pre-loaded into the fitting for PEX, PE-RT and SDR-9 HDPE. The PEX stiffener does not need to be removed for Copper or CPVC applications.
