Ball valves are used in home plumbing, industrial applications, oil and gas applications, marine applications, pharmaceuticals, and many other fields. The primary disadvantage of the ball valve is the requirement of space. In tight applications, you may not have 90 degrees to turn the valve’s handle.

What are ball valves used for?

Ball valves use a metal ball with a hole bored through the center, sandwiched between two seats to control flow. Used in many hydrocarbon process applications, ball valves are capable of throttling gases and vapors and are especially useful for low flow situations.

Can you use a ball valve for water?

Also called “shut off valves,” ball valves are the only way to immediately shut off the flow of water. Gate valves are incapable of immediate redirection. … Gate valves usually have a round knob that you turn to control the water flow. This raises or lowers an internal gate to stop or start the water.

Why are ball valves better?

Ball valves are more effective at forming a tight seal and have more reliability and longevity than gate valves, but tend to be more expensive. They are often used for shutoff and control applications. Because ball valves can open and close immediately, they are more likely than gate valves to cause water hammer.

Why is ball valve preferred over gate valve?

Sealing: A ball valve provides a tight seal and has complete shut off characteristics as compared to a gate valve. Therefore, ball valves are better suited for applications like natural gas where a proper seal long-term is important. Pressure: Both ball valves and gate valves are suitable for low pressure applications.

What is ball valve effect?

A ball valve effect (BVE) is a partial obstruction which causes an inflow of air during the inspiration phase of breathing and, on the other hand, as expiration begins, prevents outflow.

Can you use a ball valve to control flow?

A ball valve is typically a quarter-turn valve with a perforated ball in the middle to control flow. … Even though ball valves aren’t the best device to control flow, they are still commonly used because of their cost effectiveness.

Can a ball valve reduce water pressure?

To answer your question; A ball valve only controls flow not pressure. A few seconds after water is flowing a ball valve will limit the pressure based on the flow. A pressure regulator requires no more plumbing than a ball valve.

Can I use a ball valve for steam?

Ball valves are commonly used in steam, water, oil, gas, air, corrosive fluids. They can handle slurries and dusty dry fluids. Ball valves are not used with abrasive and fibrous materials as it poses risk of damage to the seat and plug surface.

Can you use a ball valve for hot water?

The ball valve is used as shut-off valves in the distribution of hot and cold water.

Article first time published on

What is difference between ball valve and globe valve?

The main difference between these two types is the way they close. A globe valve uses a plug (stem) that closes against the flow, and a ball valve has a gate (ball) that closes across the flow. Globe valves are good for regulating flow, whereas ball valves are better for on/off control without pressure drop.

Can I replace a gate valve with a ball valve?

If you already have a gate valve installed and have to replace it, you can certainly replace it with a ball valve. You will need a torch to heat up the parts and remove them. Turn the water off and drain it from the pipe and valve. You will want to open the valve as well.

Can I leave a ball valve half open?

A partially open ball valve, however, can leave the silicone or PTFE seats on either end of the ball susceptible to deformity from uneven pressure. One advantage to quarter-turn valves such as ball valves is that they can be shut off quickly. The disadvantage is that this makes water hammer more likely.

Are ball valves good for throttling?

Ball Valves are also designed to be operated fully open or fully closed with any liquid containing particles that could scratch the ball. Many people use them successfully for throttling clear water. Ball valves have low pressure drops, open and close quickly, are simple, and are trouble free.

Are ball valves air tight?

The ball valve is a notable industrial choice thanks to its reliable and air-tight sealing when in the closed position.

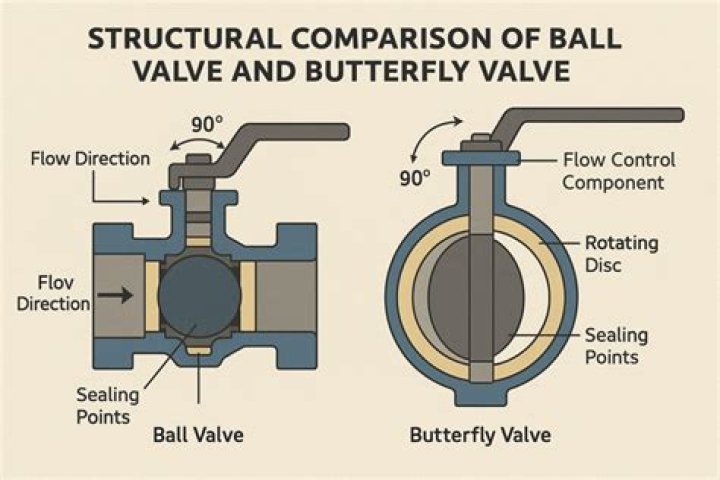

What is the difference between a ball valve and a butterfly valve?

Flow regulation: Both valve types can be used for on/off control and proportional control, but ball valves are typically used for proportional due to better flow regulation. Ports: A butterfly valve can only have two ports, while a ball valve can have more than two ports.

What valves are used for throttling?

The globe valve is primarily used as a throttling valve.

Why do ball valves fail?

A variety of factors can contribute to ball valve failure including poor design (chemical compatibility, rated pressure/flow rate, etc.), faulty installation, and/or improper operation. … Guidelines are available in literature to properly design a ball valve.

What is ball valve thrombus?

A spherical free floating clot in left atrium is un- common, mostly occurring in patients with severe mitral stenosis of rheumatic origin. Such a clot is appropriately named as “ball valve thrombus”.

What are the types of ball valves?

Types. There are five general body styles of ball valves: single body, three-piece body, split body, top entry, and welded. The difference is based on how the pieces of the valve—especially the casing that contains the ball itself—are manufactured and assembled.

What is the another name of check valve?

A check valve, non-return valve, reflux valve, retention valve, foot valve, or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.

Which type of valves is best used with steam?

By far the most widely used valve type for the automatic control of steam processes and applications is the globe valve. It is relatively easy to actuate, it is versatile, and has inherent characteristics well suited to the automatic control needs of steam.

What is the best valve for steam?

Gate valve is mainly used for steam pipeline where no need frequent open or closure; The globe valve offers a better function of flow regulation.

Can butterfly valves be used for steam?

Butterfly valves are utilized in a variety of applications. They are ideal for slurry and large volume water applications. These are also used in other applications such as vacuum services, compressed air or gas applications, and high-temperature and high-pressure water and steam services.

Can you use a ball valve to regulate pressure?

A ball valve only controls flow and not pressure. A ball valve can be used to limit the pressure after water is flowing. A ball valve requires less plumbing than a pressure Regulator. The maximum pressure won’t be reached until the set point is reached.

Does it matter which direction a ball valve is installed?

VALVE ORIENTATION: Ball valves may be installed in vertical or horizontal pipe runs, they are bi-directional therefore flow direction is not critical, however the best practice is to set up the valve handle to point in the direction of flow whenever possible.

Is a valve required on a hot water heater?

Mandated by all plumbing codes, the T & P valve relieves excess temperature and pressure in a water heater if either reaches a critical point. A water heater is a closed system, and thermal expansion is an inescapable fact of both normal and abnormal water heater functioning.

What is a globe valve?

A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.

Why globe valve is used in steam line?

Typically, globe valves are used for regulating flow in pipelines. … They are designed to stop, start and regulate the flow of a particular media in linear motion. However, they can also cater to changes in direction, which result in greater resistance to flow and higher pressure drops.

Can globe valves be used for isolation?

Can globe valves be used for isolation? A globe valve can be used either as an isolation valve or a regulating valve, depending on its trim. Globe valves are primarily designed to regulate flow in the partially open position, while gate valves are designed for the fully opened or fully closed position.

Is a globe valve full port?

Globe valves are typically two-port valves, although three port valves are also produced mostly in straight-flow configuration. Ports are openings in the body for fluid flowing in or out.
