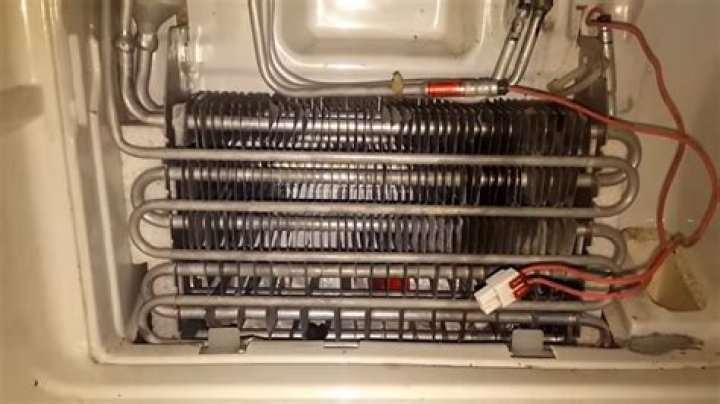

The evaporator coils sit in the back of the freezer compartment of a refrigerator and look like a radiator. The back wall of the freezer is actually the cover of the evaporator coil and can easily be opened with a screwdriver.

How do you clean an evaporator coil on a refrigerator?

1. Unplug the fridge (or turn off its circuit).
2. Remove the panel on the front of the fridge.
3. Using an angled vacuum hose, gently vacuum the evaporative coils. Start with the front part of the coils. …
4. Replace the front panel.
5. Turn the fridge back on. It’s as simple as that!

How do I know if my refrigerator evaporator is bad?

Listen for a squeal or chirp sound. If the evaporator fan motor is going bad, it may still run while making a high pitched sound that may come and go. If you hear that sort of sound, something may be caught in the fan blades or the motor may be dying.

Is evaporator inside or outside of refrigerator?

While the condenser is always located on the outside of a refrigerator, the evaporator is always on the inside.

Can dirty refrigerator coil symptoms?

• Refrigerator not cooling.
• Freezer cold but refrigerator warm.
• Refrigerator runs constantly.

Where is the evaporator located?

An air conditioner’s evaporator coil, also called the evaporator core, is the part of the system where the refrigerant absorbs heat. That is, it’s where the cold air comes from. The evaporator coil is located inside or near the air handler where the blower fan is.

Where is condenser coil in refrigerator?

The condenser coils are located either under the refrigerator behind the base grille, on the back of the refrigerator or on the top of the refrigerator.

Why is my freezer cooling but not my refrigerator?

The most common cause for this condition is a problem with the defrost system. If the refrigerator freezer is cold but the refrigerator is warm, the evaporator fan motor might have failed. Every refrigerator has a set of coils called an evaporator. These are the coils that get cold.

Why is my refrigerator running but not cooling?

The most common reason why a refrigerator is not cooling is a problem with the evaporator coils. Over time, evaporator coils can become covered with ice, which prevents the coils from working properly. If the coils are covered in ice, the ice will need to be defrosted to fix the problem.

How much is an evaporator fan for a fridge?

PartReplacement Cost (Labor Included)Fan$120 – $150Evaporator Coil$200 – $300Ice Maker$350 – $500Fridge Door$500 – $700

Article first time published on

How do you defrost an evaporator coil on a refrigerator?

Defrost your refrigerator when frost builds up on the evaporator coils and in the freezer compartment. Place the ice cubes from the freezer compartment into a cooler, remove the food from the refrigerator and place it into the cooler while the refrigerator is defrosted.

Will dust on refrigerator coils?

Condenser coils are exposed, not in a sealed casing, and therefore vulnerable to dust buildup. Dirty coils force a fridge to work harder keeping food cold, resulting in higher energy costs and a reduced lifespan for the pricey appliance.

What happens if the evaporator coil is dirty?

An extremely dirty evaporator coil can cause your AC to breakdown completely. This happens when condensation forms on the dirt and then freezes during the AC’s operation. The buildup of frost stops the heat transfer with the air in your home, which causes the air conditioner to stop cooling air at all.

How do you clean an evaporator coil without removing it?

1. Screwdriver or Electric Drill. …
2. Evaporator Coil Cleaner. …
3. Spray Bottle or Garden Hose. …
4. Towel, Blow Dryer, or Hair Dryer. …
5. Step 1: Remove the Glove Box. …
6. Step 2: Access the Evaporator Coil. …
7. Step 3: Spray the Cleaner on the Evaporator Coil Through the Access Point. …
8. Step 4: Rinse the Evaporator Coil.

Where is condenser coil in freezer?

Condenser coils are located on the back of the fridge or across the bottom. These coils cool and condense the refrigerant. When the coils are clogged with dirt and dust, they can’t efficiently release heat.

What is an evaporator coil in a fridge?

The evaporator coil inside of a side-by-side refrigerator. A refrigerator’s evaporator coil is the part of the refrigeration cycle that actually makes the inside of the fridge cold. … After absorbing all the heat it can, the refrigerant is pumped back into the refrigeration cycle by the compressor.

How do you fix a frozen evaporator coil?

Give the Frozen Evaporator Coils Time to Thaw Left to its own devices, it could take up to 24 hours for the coils to thaw completely. You can speed this process up somewhat with the help of a hair dryer, especially if you need your A/C unit up and running as soon as possible.

How do I know if my evaporator coil is frozen?

1. Your AC is not cooling.
2. Ice is present around the outdoor refrigerant line.
3. Your evaporator coil has condensation and/or ice forming on it.
4. The condensate drain line is clogged.
5. The condensate drain pan is overflowing.

Will unplugging a fridge reset it?

Unplug your refrigerator Disconnect your fridge from its power source by removing the power cord from the wall outlet. You may hear some whooshing or knocking noises after you do so; that’s normal. Make sure your fridge stays unplugged for several minutes, otherwise the reset won’t work.

How do I check the Freon in my refrigerator?

To tell if your refrigerator needs more Freon, simply unplug the refrigerator, turn off the temperature control and place your ear on the side of the unit. A hissing or gurgling sound indicates that Freon is present. However if you hear nothing it’s likely that your fridge may be low on Freon.

Why is my fridge warm?

Refrigerator Is Too Full If there are too many items in your fresh food compartment, that cold air may not circulate properly, resulting in a refrigerator that’s warm. It’s fairly common for a refrigerator to feel warm if it’s overstuffed, and this problem is obviously easy to resolve.

Why is my evaporator coil not getting cold?

If your central AC is not blowing cold air, the refrigerant may be the problem. The unit could be running low and need additional refrigerant added. The most likely cause of this is a leak. A leak not only keeps the AC unit from cooling properly, but also it can cause other issues within the home.

Is it cheaper to repair or replace a refrigerator?

As a rule, Consumer Reports recommends replacing a product if the cost of the repair is more than half the price of buying a new one. You can make your own call by checking our updated repair-or-replace timelines.

Is a 15 year old refrigerator worth repairing?

A typical refrigerator has a 10- to 20-year lifespan. The longer you have had your refrigerator, the greater the potential repair cost, says The Money Pit. If the refrigerator is less than eight years old, consider repair. If the refrigerator is more than 15 years old, consider replacement.

What causes the evaporator coil to freeze?

One of the most common causes of a frozen evaporator coil is lack of system airflow. … If there isn’t enough air blowing over your evaporator coil, the coil won’t have enough heat to absorb. This will cause the condensation on the coil to freeze over.
