Rooftop variable-air-volume (VAV) systems are used to provide comfort in a wide range of building types and climates. This system consists of a packaged rooftop air conditioner that serves several individually-controlled zones. Each zone has a VAV terminal unit that is controlled by a temperature sensor in the zone.

What is a VAV and how does it work?

The VAV regulates the volume of the air to the zone by opening or closing the damper, thus controlling the amount of conditioned air directed to the zone. Each zone in a building has a thermostat that controls the VAV, telling it when to open or shut the damper based upon the needs of the zone.

How does a VAV RTU work?

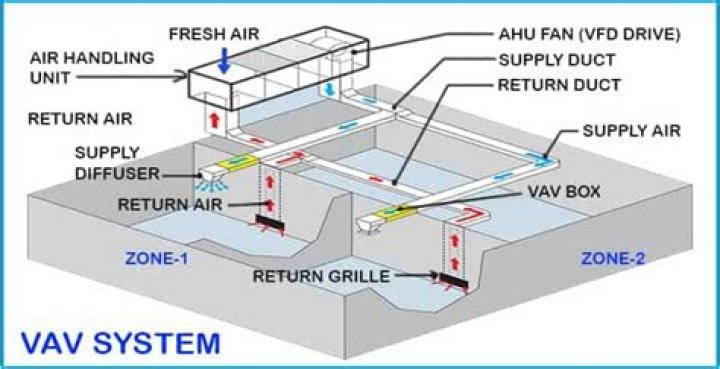

Similar to a single zone system, a VAV RTU system has supply air distribution ductwork, and air distribution in the space. Instead of a motor starter, a variable speed drive has been added to the supply air fan. Instead of one space sensor there are multiple space temperature sensors serving multiple zones.

What does VAV unit stand for?

Variable Air Volume Control System Variable Air Volume (VAV) is a type of heating, ventilating, and/or air-conditioning (HVAC) system. The simplest VAV system incorporates one supply duct that, when in cooling mode, distributes approximately 55 °F (13 °C) supply air.

Is an air terminal unit the same as a VAV?

Types of Air Terminal Units & Style of Space Air terminal units are often referred to as VAV (Variable Air Volume) units because the airflow to the space can be adjusted, based on varying loads in the space.

Where are VAV systems used?

Unlike CAV, the cold water flow supplied to the fan coil unit is kept constant. VAV systems achieve their full potential in applications where there a multiple zones with variable load. Some examples are malls, hotels and office buildings. VAV boxes have a role similar to the duct heaters used in a CAV system.

Do Vavs Have filters?

Each VAV terminal box is connected to a supply air source. This is a ducted connection that provides air from an AHU. Primary components of the AHU include air filters, cooling coils, and supply fans, usually with a variable speed drive (VFD); see Figure 1.

Do VAV systems use water?

Advantages of VAV systems include the following points: VAV systems are very cost effective from a chilled-water and heating-water-pumping perspective. … This is because there is no chilled water coil at the VAV terminal and, where non-fan powered VAV terminal are used, there is no filter at the unit.

Does a VAV box need power?

POWER SUPPLY IS INSTALLED ARE NOT REQUIRED WHEN THE ENCLOSURE & BACKPLATE LOCATION(S). NUMBER OF BOXES & MECHANICAL CONTRACTOR FOR SUPPLY(S). COORDINATE WITH SUPPLY & INSTALL POWER MECHANICAL CONTRACTOR TO VAV BOX 24V POWER SUPPLY(S).

How much does a VAV box cost?

Installed cost of a VAV box with controls is usually between $2000 and $35001. Installed cost for box zones with 4 to 8 diffusers or smaller is more than for VAV diffusers.

Article first time published on

What is VRV system?

VRV system is a multi-split type air conditioner that uses variable refrigerant flow control to provide customers with the ability to maintain individual zone control in each room and floor of a building.

What are VAV boxes used for?

These terminal units, commonly referred to as VAV boxes, are used to control the volume and, sometimes, the temperature of air entering a designated space. There are a few different types of terminal units used in today’s developments: single duct, parallel fan-powered, and series fan-powered.

Who makes VAV boxes?

The Johnson Controls single duct units along with all VAV family model types of Johnson Controls are manufactured and assembled with a patented multi-point, center-averaging, airflow sensor called the FlowStar sensor.

What are the different types of VAV boxes?

There are two primary types of VAV systems—single-duct and dual-duct.

What is inside a VAV box?

Typically, a VAV box consists of a few simple parts: the damper, the controller/actuator, and perhaps a coil for heating and cooling via electricity or water pumps. As the air passes through these boxes the actuator modulates the damper position which allows different amounts of airflow into the zone.

What is difference between VAV and CAV?

Variable air volume (VAV) is a type of heating, ventilating, and/or air-conditioning (HVAC) system. Unlike constant air volume (CAV) systems, which supply a constant airflow at a variable temperature, VAV systems vary the airflow at a constant temperature.

What is the primary temperature you would expect to find on a VAV air conditioning system?

Traditionally, the primary supply has been at a fixed temperature and is often at about 13°C, since the original role of the VAV system was to provide only cooling to core areas in buildings.

What is the difference between VAV and VRF?

VRF, variable refrigerant flow, is a more recent HVAC technology than VAV and uses refrigerant as its medium to heat and cool. … Whether it be a separate office or conference room, or an independent store, a VRF system allows each area or zone unique temperature control without affecting the rest of the building.

What does vrv stand for in air conditioning?

When Daikin launched the VRV* air conditioning system in 1982, it introduced the world’s first use of variable refrigerant volume control. Also referred to as a VRF system, variable refrigerant flow is a technology that circulates only the minimum amount of refrigerant needed during a single heating or cooling period.

How do Johnson Controls thermostats work?

A Johnson Controls thermostat connects to a building’s heating and air conditioning system, and its thermometer detects the building’s temperature to control whether the furnace should activate and heat the building, or if the air conditioning should turn on and cool the building.

Is a fan coil unit a VAV?

VAV fan coil units operate differently. Rather than use an AC motor, the fan is driven from an electronically commutated (EC) motor so its speed can be varied simply by adjusting the voltage. This is the key to the energy savings, because the power required by the fan changes as a cube of the flow induced by it.

How long does it take to install a VAV?

The terminal box installation labor can be found in Table T-138 of the CRM, assume an 800 CFM unit. The estimated installation rate is 3.5 man-hours17.

Is VAV energy efficient?

are built with multiple mechanisms for compensation, making the end result quite robust in terms of comfort. Unfortunately, these compensations generally cause additional energy consumption. As a result, standard VAV design is not robust in terms of energy efficiency.

How much does it cost to install ductwork in a house?

Ductwork Installation CostsNational average cost$4,000Average range$1,900-$6,000Minimum cost$550Maximum cost$12,000

What is Cassette AC?

The indoor unit itself sits flush to your ceiling and distributes conditioned air through two, three or four sides of the unit. … The outdoor unit of a cassette air conditioner is mounted outside, in much the same way as it would be for a conventional wall mounted split system unit.

What is AHU and FCU?

AHU and FCU are both included in the HVAC system. … AHUs are usually connected to a central HVAC system whereas an FCU can function or be installed itself. Because of this, it is often the AHU that is used to ventilate an entire building whereas FCUs are used in smaller and often local spaces only.

What is Ductable AC?

A ducted air conditioning system is one which functions by pumping cool air through a centrally located cooling unit. … A perfect cooling machine for large homes and commercial properties, Ductable air conditions can simply be installed using a single unit which makes them a simple and sophisticated cooling option.

How do I choose a VAV box?

For example, the maximum rating of a VAV box for a general office with a desired NC level of 30 should be no more than NC 35. Usually, inlet diameter determines VAV-box size. If one VAV box cannot meet noise criteria, consider using two. Two or more VAV boxes can be controlled with one temperature sensor.

How does a damper actuator work?

Part of a heating, ventilation, and air conditioning (HVAC) system, a damper actuator controls the opening and closing of a damper. Opening the damper allows air from outside a building to enter, in order to cool the interior, or it can close to contain the inside air.

What is a VMA controller?

The Variable Air Volume Modular Assembly (VMA) is a family of configurable digital controllers. Differing models in the VMA1400 series combine a controller, pressure sensor and/or actuator housed in one pre-assembled unit.

What is VAV terminal load?

Variable air volume (VAV) systems control the dry bulb temperature inside a zone by varying the supply air volume instead of the air temperature. At full cooling the VAV terminal unit damper is fully open supplying the specified maximum design air flow rate.
